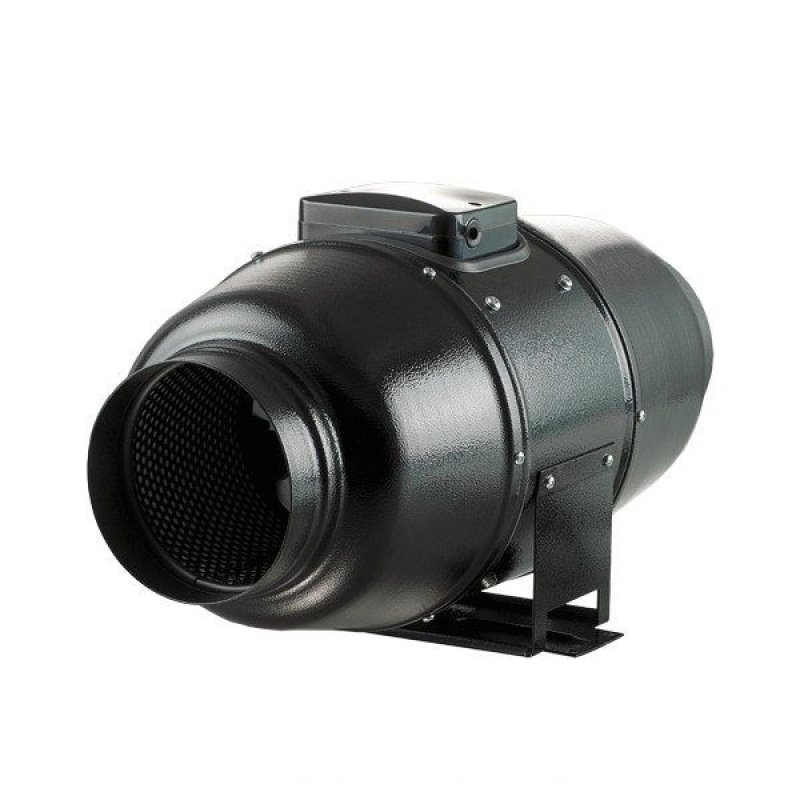

TT Silent/Dalap AP 100 Duct Fan, 170/240m3/h

Ultra-Quiet In-Line Ventilation Solution

The TT Silent/Dalap AP 100 in-line duct fan represents the pinnacle of whisper-quiet ventilation technology for indoor growing environments. This extremely quiet ventilation system combines the performance advantages of both axial and radial fan designs, making it perfect for growers who demand powerful airflow without noise pollution. Compatible with all types of 100mm diameter ducting systems, this fan excels in high static pressure applications where traditional fans struggle to maintain efficiency.

Engineered specifically for indoor cultivation spaces, grow rooms, and hydroponic systems, the TT Silent AP 100 delivers consistent air circulation while maintaining near-silent operation. This makes it ideal for residential growing setups, stealth grows, or any application where noise control is critical to success.

Key Features and Performance Benefits

The TT Silent/Dalap AP 100 incorporates advanced engineering features that set it apart from conventional in-line fans. Its dual-speed motor with thermal protection ensures reliable operation under varying load conditions, while the precision ball bearings extend operational life significantly.

• Dual-speed motor with integrated thermal overload protection for enhanced reliability
• Premium ball bearing system rated for up to 40,000 hours of continuous operation
• Semi-radial metal impeller blades engineered for maximum airflow efficiency
• Steel housing with black polymer coating for durability and noise reduction
• Robust plastic impeller wheel designed for consistent performance
• Vibration-free operation with exceptional noise dampening technology
• External mounting junction box for simplified electrical connections

Technical Performance and Installation

This versatile in-line fan delivers impressive airflow rates of 170/240 m³/h across its two operating speeds, while consuming minimal power at just 24/26W. The fan operates at 2030/2630 RPM with acoustic levels of only 24/29 dBA, making it virtually silent in operation. The unit can handle ductwork runs up to 12 meters in length while maintaining optimal performance.

Installation flexibility is a key advantage, with the TT Silent AP 100 supporting both horizontal and vertical mounting orientations without performance degradation. The external mounting bracket system allows for secure wall or ceiling installation, while the IP X4 rating ensures reliable operation in humid growing environments up to 60°C.

Optimal Applications and Growing Environments

The TT Silent AP 100 excels in a wide range of ventilation applications including grow tents and growing boxes, kitchens, offices, workshops, and greenhouse environments. Its compact design and quiet operation make it particularly well-suited for residential indoor growing operations where discretion is important.

For grow room applications, this fan provides the consistent air exchange necessary for maintaining optimal growing conditions while supporting proper humidity control in grow rooms. The dual-speed functionality allows growers to adjust ventilation rates based on plant growth stages and environmental requirements.

Speed Control and System Integration

The fan's dual-speed capability can be configured either as a fixed setting during installation or controlled via an external speed switch (sold separately). This flexibility allows growers to optimize ventilation based on specific environmental conditions and growing requirements. The comprehensive installation manual provides detailed wiring diagrams and setup instructions for various control configurations.

When integrated with carbon filters, ducting systems, and climate controllers, the TT Silent AP 100 forms the foundation of an effective environmental control system. Its reliable performance and quiet operation make it an excellent choice for growers who want to avoid the common problems in grow rooms associated with inadequate ventilation.

Technical Specifications
